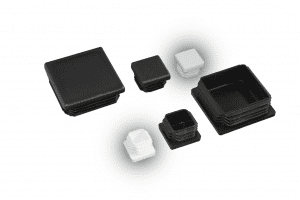

square ribbed inserts
Square ribbed inserts mainly for use in the pipe and pipe section manufacturing, furniture and tubing industries. These provide protection from sharp tube edges, dust and dirt particles, however they can also be used in various other applications. In addition, you can use them to protect floor surfaces when used as feet.
You can order these inserts from the table directly below.

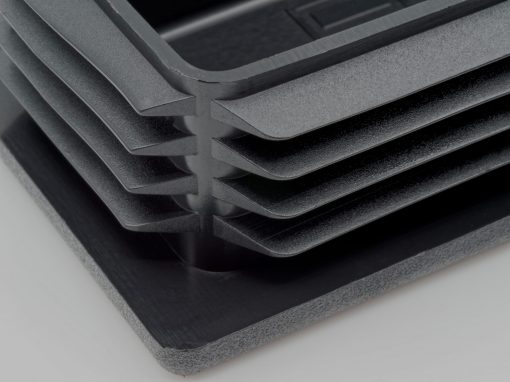

The inserts are ribbed and therefore provide easy assembly and secure fitting.
We manufacture the inserts from black or white low density polyethylene. The products are reusable as well as the material being widely recyclable.
You can purchase other ribbed inserts from Thredgards. Therefore, please see our round ribbed inserts and rectangular ribbed inserts pages.
Please see our square end plug section for packaging and lighter square applications. You can also use our tapered plugs for plugging solutions as well as our pipe end caps for capping solutions.
Please contact our technical sales advisers should you need any help with sizes or fitting requirements.

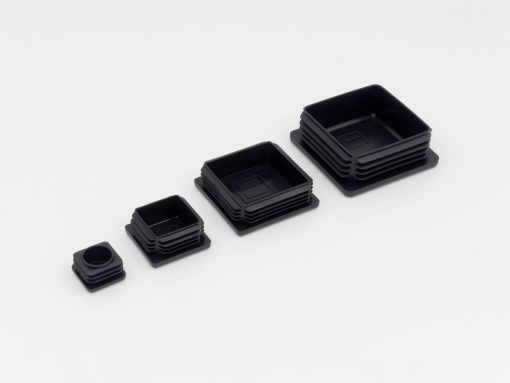

A selection of our square ribbed inserts
Part No. | Compare | L x L1 (mm) | L x L1 (ins) | H (mm) | H1 (mm) | I (mm) | I (gauge) | Colour | Bulk | Buy | hf:att:pa_l-x-l1-mm | hf:att:pa_l-x-l1-ins | hf:att:pa_h-mm | hf:att:pa_h1-mm | hf:att:pa_i-mm | hf:att:pa_i-gauge | hf:att:pa_colour | hf:att:pa_a | hf:att:pa_b | hf:att:pa_bsp | hf:att:pa_c | hf:att:pa_d | hf:att:pa_d-ins | hf:att:pa_d-mm | hf:att:pa_dn | hf:att:pa_e | hf:att:pa_f | hf:att:pa_finish | hf:att:pa_inside_diameter | hf:att:pa_inside_length | hf:att:pa_l-gauge | hf:att:pa_l-mm | hf:att:pa_lbs | hf:att:pa_metric | hf:att:pa_nominal | hf:att:pa_od | hf:att:pa_shape | hf:att:pa_unf | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SQRI-10 | 10.0mm | 4.0mm | 11.5mm | 1.5-2.0mm | Black | Quantity Price Breaks
| 10-0mm | 4-0mm | 11-5mm | 1-5-2-0mm | black | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-12 | 12.0mm | 4.0mm | 11.5mm | 1.5-2.0mm | Black | Quantity Price Breaks
| 12-0mm | 4-0mm | 11-5mm | 1-5-2-0mm | black | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-12.7 | 12.7mm | ½" | 4.0mm | 11.5mm | 0.8-2.0mm | 14-20 | Black | Quantity Price Breaks
| 12-7mm | %c2%bd-2 | 4-0mm | 11-5mm | 0-8-2-0mm | 14-20-2 | black | eroded | ||||||||||||||||||||||||||||||||
SQRI-15 | 15.0mm | 4.0mm | 11.5mm | 0.8-2.0mm | Black, White | Quantity Price Breaks
| 15-0mm | 4-0mm | 11-5mm | 0-8-2-0mm | black|white | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-16 | 16.0mm | 5.0mm | 11.5mm | 0.8-2.5mm | 12-20 | Black | Quantity Price Breaks
| 16-0mm | 5-0mm | 11-5mm | 0-8-2-5mm | 12-20-2 | black | eroded | ||||||||||||||||||||||||||||||||||
SQRI-18 | 18.0mm | 5.0mm | 16.5mm | 1.2-1.5mm | Black | Quantity Price Breaks
| 18-0mm | 5-0mm | 16-5mm | 1-2-1-5mm | black | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-19 | 19.0mm | ¾" | 5.0mm | 11.5mm | 0.8-2.5mm | 10-12 | Black | Quantity Price Breaks
| 19-0mm | %c2%be-2 | 5-0mm | 11-5mm | 0-8-2-5mm | 10-12-2 | black | eroded | ||||||||||||||||||||||||||||||||
SQRI-20 | 20.0mm | 5.0mm | 11.5mm | 0.8-2.5mm | Black | Quantity Price Breaks
| 20-0mm | 5-0mm | 11-5mm | 0-8-2-5mm | black | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-22 | 22.0mm | 5.0mm | 11.5mm | 0.8-2.5mm | 10-12 | Black | Quantity Price Breaks
| 22-0mm | 5-0mm | 11-5mm | 0-8-2-5mm | 10-12-2 | black | eroded | ||||||||||||||||||||||||||||||||||
SQRI-25 | 25.0mm | 5.0mm | 11.5mm | 1.0-2.5mm | Black | Quantity Price Breaks
| 25-0mm | 5-0mm | 11-5mm | 1-0-2-5mm | black | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-25.4 | 25.4mm | 1" | 5.0mm | 11.5mm | 1.0-2.5mm | 12-20 | Black | Quantity Price Breaks
| 25-4mm | 1-3 | 5-0mm | 11-5mm | 1-0-2-5mm | 12-20-2 | black | eroded | ||||||||||||||||||||||||||||||||
SQRI-30 | 30.0mm | 5.0mm | 11.5mm | 1.0-3.0mm | Black | Quantity Price Breaks
| 30-0mm | 5-0mm | 11-5mm | 1-0-3-0mm | black | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-32 | 32.0mm | 1¼" | 5.0mm | 11.5mm | 1.0-3.0mm | 10-18 | Black, White | Quantity Price Breaks
| 32-0mm | 1%c2%bc | 5-0mm | 11-5mm | 1-0-3-0mm | 10-18-2 | black|white | eroded | ||||||||||||||||||||||||||||||||
SQRI-35 | 35.0mm | 1⅜" | 5.0mm | 11.5mm | 1.0-3.0mm | 10-18 | Black | Quantity Price Breaks
| 35-0mm | 1%e2%85%9c | 5-0mm | 11-5mm | 1-0-3-0mm | 10-18-2 | black | eroded | ||||||||||||||||||||||||||||||||
SQRI-38 | 38.0mm | 1½" | 5.0mm | 14.5mm | 1.0-3.0mm | 10-18 | Black, White | Quantity Price Breaks
| 38-0mm | 1%c2%bd | 5-0mm | 14-5mm | 1-0-3-0mm | 10-18-2 | black|white | eroded | ||||||||||||||||||||||||||||||||
SQRI-40 | 40.0mm | 5.0mm | 14.5mm | 1.0-3.0mm | Black | Quantity Price Breaks
| 40-0mm | 5-0mm | 14-5mm | 1-0-3-0mm | black | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-45 | 45.0mm | 5.0mm | 14.5mm | 1.0-3.0mm | Black | Quantity Price Breaks
| 45-0mm | 5-0mm | 14-5mm | 1-0-3-0mm | black | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-50 | 50.0mm | 5.0mm | 14.5mm | 1.0-3.0mm | Black | Quantity Price Breaks
| 50-0mm | 5-0mm | 14-5mm | 1-0-3-0mm | black | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-50/1 | 50.0mm | 6.6mm | 18.0mm | 3.0-5.0mm | Black | Quantity Price Breaks
| 50-0mm | 6-6mm | 18-0mm | 3-0-5-0mm | black | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-50.8 | 50.8mm | 2" | 5.0mm | 14.5mm | 1.0-3.0mm | 10-18 | Black | Quantity Price Breaks
| 50-8mm | 2-2 | 5-0mm | 14-5mm | 1-0-3-0mm | 10-18-2 | black | eroded | ||||||||||||||||||||||||||||||||
SQRI-55 | 55.0mm | 5.0mm | 14.5mm | 2.0-4.0mm | Black | Quantity Price Breaks
| 55-0mm | 5-0mm | 14-5mm | 2-0-4-0mm | black | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-60 | 60.0mm | 5.0mm | 24.3mm | 3.0-4.0mm | Black | Quantity Price Breaks
| 60-0mm | 5-0mm | 24-3mm | 3-0-4-0mm | black | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-60/1 | 60.0mm | 5.0mm | 14.5mm | 1.0-3.0mm | Black | Quantity Price Breaks
| 60-0mm | 5-0mm | 14-5mm | 1-0-3-0mm | black | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-63.5 | 63.5mm | 2½" | 6.0mm | 14.5mm | 1.0-3.0mm | 11-20 | Black | Quantity Price Breaks
| 63-5mm | 2%c2%bd | 6-0mm | 14-5mm | 1-0-3-0mm | 11-20-2 | black | eroded | ||||||||||||||||||||||||||||||||
SQRI-65 | 65.0mm | 6.0mm | 14.5mm | 1.0-3.0mm | Black, White | Quantity Price Breaks
| 65-0mm | 6-0mm | 14-5mm | 1-0-3-0mm | black|white | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-70 | 70.0mm | 6.0mm | 22.0mm | 2.0-4.0mm | Black | Quantity Price Breaks
| 70-0mm | 6-0mm | 22-0mm | 2-0-4-0mm | black | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-75 | 75.0mm | 6.0mm | 22.0mm | 2.0-4.0mm | Black, White | Quantity Price Breaks
| 75-0mm | 6-0mm | 22-0mm | 2-0-4-0mm | black|white | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-76.2 | 76.2mm | 3" | 6.0mm | 22.0mm | 2.0-4.0mm | 8-14 | Black, White | Quantity Price Breaks
| 76-2mm | 3-2 | 6-0mm | 22-0mm | 2-0-4-0mm | 8-14-2 | black|white | eroded | ||||||||||||||||||||||||||||||||
SQRI-80 | 80.0mm | 6.0mm | 22.0mm | 2.0-4.0mm | Black, White | Quantity Price Breaks
| 80-0mm | 6-0mm | 22-0mm | 2-0-4-0mm | black|white | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-90 | 90.0mm | 6.0mm | 21.0mm | 3.0-5.0mm | Black | Quantity Price Breaks
| 90-0mm | 6-0mm | 21-0mm | 3-0-5-0mm | black | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-100 | 100.0mm | 7.0mm | 22.0mm | 2.0-4.0mm | Black | Quantity Price Breaks
| 100-0mm | 7-0mm | 22-0mm | 2-0-4-0mm | black | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-110 | 110.0mm | 6.0mm | 24.5mm | 3.0-5.0mm | Black | Quantity Price Breaks
| 110-0mm | 6-0mm | 24-5mm | 3-0-5-0mm | black | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-120 | 120.0mm | 5.0mm | 25.0mm | 2.5-5.0mm | Black | Quantity Price Breaks
| 120-0mm | 5-0mm | 25-0mm | 2-5-5-0mm | black | eroded | ||||||||||||||||||||||||||||||||||||
SQRI-150.0 | 150.0mm | 7.0mm | 27.0mm | 5.0-8.0mm | Black | Quantity Price Breaks
| 150-0mm | 7-0mm | 27-0mm | 5-0-8-0mm | black | eroded |
Click the icon to see bulk prices
